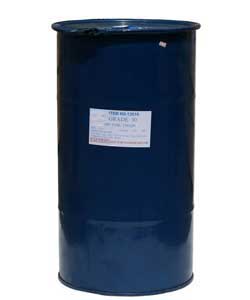

Grade 40 High Test Chain - Self Colored Full-Drums

Grade 40 High Test Chain - Self Colored Full-Drums

$ 775.00

A medium carbon steel chain with higher strength-to-weight ratio than proof coil. Widely used in industry, construction, agricultural and lumbering operations. Nominal weights and dimensions are subject to a plus or minus tolerance of 4%. Weights are in pounds (Lbs.). Length & Width dimensions are the inside link.


Finish: Self Colored

FEATURES:

  • Meets NACM 2010 Standards
  • Meets ASTM A413-07 Standards

AVAILABLE SIZES:

SIZE Wire Diameter Inner Length Inner Width Feet Working Load Limit
1/4" 0.276" 1.24" 0.38" 800' 2600lbs
5/16" 0.315" 1.28" 0.44" 550' 3900lbs
3/8" 0.394" 1.38" 0.55" 400' 5400lbs
1/2" 0.512" 1.79" 0.72" 200' 9200lbs
5/8" 0.630" 2.20" 0.79" 150' 13000lbs
3/4" 0.787" 2.75" 1.06" 100' 20200lbs



CAUTION:

NOT FOR OVERHEAD LIFTING!
NEVER EXCEED CAPACITY.
DO NOT USE FOR LIFTING PEOPLE OR LOADS OVER PEOPLE.
